Fire Pump System Electric Diesel Jockey Pump from ZY Fire Fighting Pump Set

Brand Name : ZY

Model Number : EDJ

Place of Origin : Zhejiang, China

MOQ : 1set

Price : $1100-$20000

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000set/month

Delivery Time : 7-30WD

Packaging Details : wooden box

Certification : ISO9001

Structure : Multistage Pump

Usage : Water

Application : fire pump

Power : Electric

Fuel : fire pump

Pressure : High Pressure

Theory : Centrifugal Pump

Contact Now

Fire Pump System Electric Diesel Jockey Pump from Purity Fire Fighting Pump Set

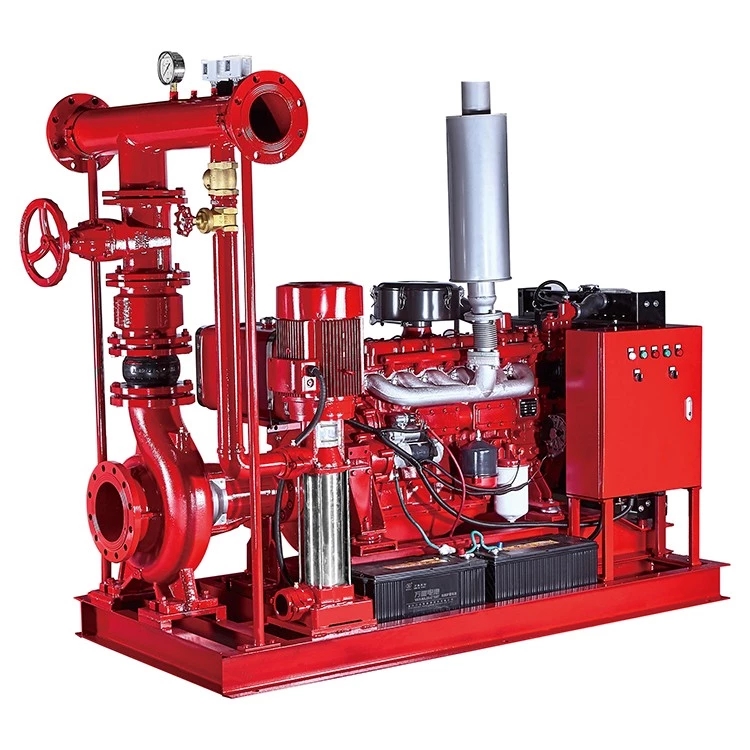

EDJ Fire Pump Set with Electric+Diesel+Jockey Pump

EDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.
Advantages
Switch Automatically among the three pumps
Both Manual and Automatic operation is available
Can work when the power is off
Easy Installation
Customized size and pump group
YE3 high efficient motor with protection IP55 class F
High performance and low power consumption
Pump case with Anti-corrosive coating
With quality NSK bearings, wear resistance mechanical seal
Circuit available up on request
Different Mounting Styles
Low Maintenance Cost and available spare parts
Electronic battery charger
Detail Description
Fire Pump System Electric Diesel Jockey Pump from ZY Fire Fighting Pump Set

Model Section Forma

SYSTEM TYPE 1----EJ Fire Pump Set with Electric+Jockey Pump

EJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

Fire Pump System Electric Diesel Jockey Pump from ZY Fire Fighting Pump Set

SYSTEM TYPE 2--DJ Fire Pump Set with Diesel+Jockey Pump

EJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

Fire Pump System Electric Diesel Jockey Pump from ZY Fire Fighting Pump Set

SYSTEM TYPE 3-- EDJ Fire Pump Set with Electric+Diesel+Jockey Pump+Pressure Vessel

EDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.

Control Panel Box

Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.

Fire Pump System Electric Diesel Jockey Pump from ZY Fire Fighting Pump Set

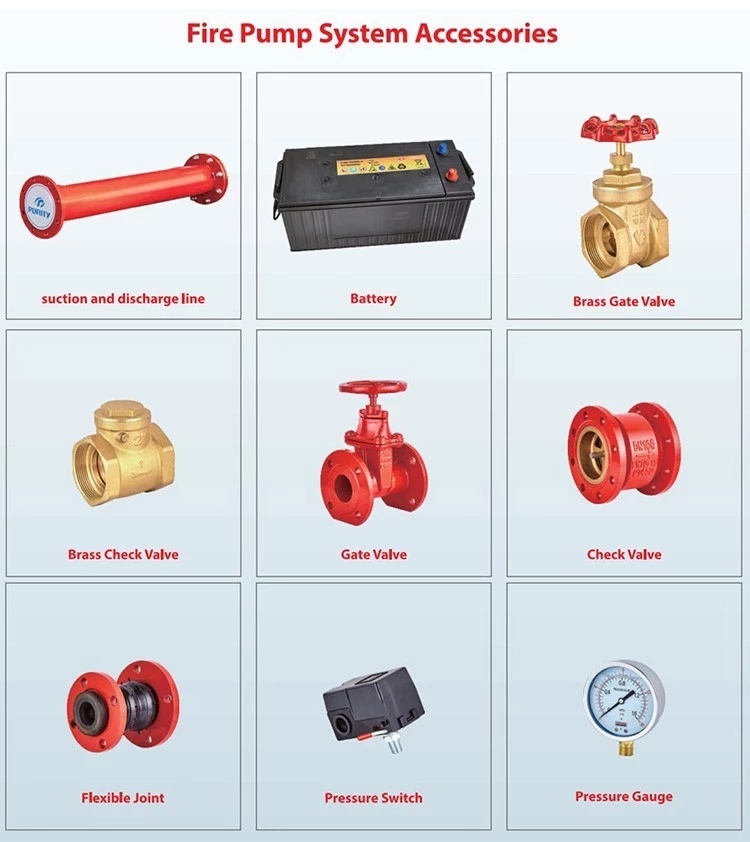

Fire Pump System Accessories
